Forum Posts

Pedro Braga
Mar 13, 2019
In How to use Unyk
Color Schemer is a tool allowing you to see the suggested areas to create supports inside the surfaces on the object. INFO! This article is about Color Schemer and all actions performed in the Support Tab. WHAT DOES IT LOOK LIKE? The surfaces with Color Schemer are covered by a range of colors from red to blue corresponding to the necessity to create supports in those surfaces. Details are as below: Red areas (1) are the lowest ones on the surfaces. They will be the first printed parts. This means you have to create supports there. Yellow areas (2) are often surrounding the Red areas. This means you should create supports there to reinforce the Red areas. Green areas (3) are higher than the yellow ones. Therefore, adding supports in these areas depends on the size of the surfaces and the weight of the object. Blue areas (4) are the highest ones on the surfaces. This means it is often not necessary to create supports there. HOW CAN YOU VIEW IT? Please follow the two steps below to open Color Schemer: Create supports advancedly for the object (through Object Context Menu/Create Support (Advanced) or Main Toolbar/Create Support /Advanced.In the Support Tab opened, click on View Support/Color Schemer. The surfaces of the selected supports (colored green) will be shown. If Color Schemer is not chosen, you will just see the orange border of the surfaces of the selected supports. Note: If you want to see all the suggested areas to create supports inside all the surfaces on the object, let’s select View Support/All surfaces as well. FAQ: Why sometimes can’t you see the surfaces to create supports though Color Schemer has been selected? There are three possible reasons and solutions for this situation: The support types you selected are not Wall/Scaffold/Shoring: Please edit/add the current support profile in the Support Menu on the Right Quick Access Toolbar. Then, add one or more of the three mentioned support types above. You create the supports manually: You could create the supports advancedly. Or, you could create the supports manually, then use Create Support in the Support Main Toolbar. Your object has too small surfaces and the Surface Filter ignores it: Please edit the current support profile in the Support Menu on the Right Quick Access Toolbar and modify the Surface Filter according to the current object.
Color Schemer for Supports content media
0
0
25
Pedro Braga
Mar 13, 2019
In How to use Unyk

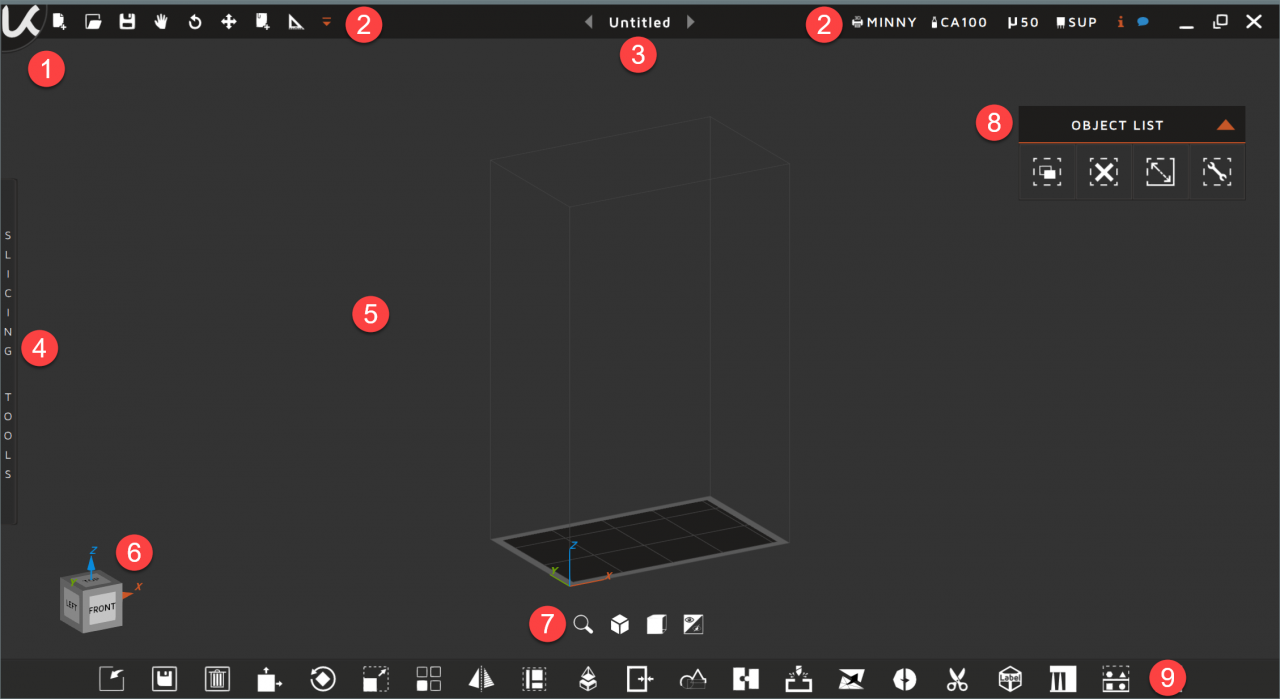

Unyk is a software program created in tandem with 3D Printers in order to allow the users to prepare 3D objects/models for actual printing with any 3D Printer available in the market. SCREEN LAYOUT When Unyk starts, a new blank project appears on the Unyk screen. The following illustration identifies each part of the Unyk screen. File Menu Quick Access Toolbar Title Bar Slicing Tools 3D Area View Box Quick View Bar Object List Main Toolbar FILE MENU New Project (Ctrl + N): creating a new project. Open Project (Ctrl + O): opening an existing project. Save Project (Ctrl + S): saving a project. Save As: saving a project as another one. Recent Objects: opening one of the recent objects. Recent Projects: opening one of the recent projects. Import From Project: importing items from a project saved. Preferences (Ctrl + F4): configuring the preferences. 3D Print (Ctrl + P): printing a project. Help: containing the Unyk User’s Manual and all the necessary documentation for a good understanding of the software and the 3D printer. About: providing you with the information about the Unyk software such as version number, update status, program information, copyright, etc. Exit: Exit Unyk. LEFT QUICK ACCESS TOOLBAR New Project (Ctrl + N): creating a new project. Open Project (Ctrl + O): opening an existing project. Save Project (Ctrl + S): saving a project. Pick: selecting one or many objects and moving, rotating or rescaling it/them. Rotate (F3): rotating both the platform and the object. Panning (F4): selecting both the platform and the object and dragging them to another position. Undo (Ctrl + Z): canceling or reversing the last command or commands executed. Redo (Ctrl + Y): reversing the action undone.    Add Note: adding a note to a part of the object marked with a blue circle. Measure: measuring the distance, radius, angle, etc. between the parts belonging to the object. RIGHT QUICK ACCESS TOOLBAR 3D Printer: selecting, viewing, editing or adding a printer. Material: viewing details of the materials and selecting the material. Thickness: showing the thickness of each layer to print. Support: selecting, viewing, editing or adding supports. Information: providing you with the following information: PT: estimated print time. VOL: volume of the object. Feedback: letting you send your comments or report issues with the Unyk to us. INFO! The estimated print time depends on the pre-selected Printer, Material, and Thickness. Therefore, it will be updated whenever you add or move an object. TITLE BAR The Title Bar is a bar located in the middle of the top bar of the Unyk screen and displays the name of the project being worked between two arrows. It can contain many tabs showing the names of the opened/imported object, created support, and done repairs. SLICING TOOLS The Slicing Tools is a toolbar located along the left side of the Unyk screen and allows you to view or visualize the cross section of an object and export all the slice images of the object. Move the cursor to any point on the Slicing Tools bar. A detailed toolbar pops up along the left side of the Unyk screen Height Bar: showing the height (mm) of the slice of the object calculated from the bottom of the platform according to the Z-coordinate. Objects: showing the slice of the object with or without the object. Parts: showing or hiding the parts of the object above the slice plane of the object. Plane: showing the plane cutting the object and containing the slices, and a vertical ruler. Hatching: showing the printed area of the object which is marked with a yellow net. Slice Run: allowing the Height Bar to run automatically from the minimum point (the lowest point) to the max point (the highest point) of the bar. Slice Settings: creating configurations for the slice run. Slice Export: allowing all the slice images of the object to be exported when the whole object is inside the platform. 3D AREA You visualizing all the objects inside the area. It includes: Coordinate System (x, y, z): defines a frame of reference which is to measure the position, orientation, and other properties of the objects inside it. Platform: is the three-dimensional area which defines the space/border within which the objects can be printed. If there are any objects or parts of the objects missing from the platform, or being not placed completely inside its boundaries, the job will not be printed. VIEW BOX Being located at the left bottom of the 3D Area and includes Orientation Box and Orientation Indicator. It lets you visualize the object in different angles or describe its position and orientation in the 3D Area. QUICK VIEW BAR Zoom: letting you magnify the Platform (Zoom Platform)/Objects (Zoom Objects)/a part of the 3D Area (Zoom Window) or enlarge (Zoom In)/reduce (Zoom Out) the 3D Area. Shade: letting you visualize the object in six different modes: Shade, Triangle, BoundingBox, ShadeWire, Wireframe, and Transparent. The Transparent mode can be chosen together with one of the rest five modes. Top/Front: letting you view the object in seven directions: Top/Front, Back, Front, Left, Right, Top, and Bottom. Show/Hide: letting you show or hide visualization tools in the 3D Area such as Platform, Coordinate System (Coordinate), Orientation Indicator (Orientation), and Orientation Box; object information such as Dimensions, name (Tag), and Object Info. Moreover, you could make Ruler and Mark Menu appear or disappear to work with the object.   OBJECT LIST Located on the top right corner of the 3D Area. It lets you see the list of the objects shown in the 3D Area and the toolbar to work with the objects. Select All: letting you select all the existing objects in the Object List/3D Area. Clear Selection: letting you deselect the objects selected. Invert Selection: letting you select the objects unselected and vice versa. If there is no selection, all the objects will be selected. Repair All: letting you repair all the existing error objects in the Object List. For each existing object in the Object List, there is an Object Square. You could see its current status (maximum of three statuses) with dim buttons or four function items surrounding the image of the object in the center with bright buttons by hovering the cursor over the Object Square. Show/Hide Object: letting you show or hide the object. Unload Object: letting you remove the object from the current project. Repair Object: letting you repair the object. Unload Object: letting you remove the object from the current project. Create Support: letting you create/edit the object support Show/Hide Support: letting you show or hide the object support. MAIN TOOLBAR The Main Toolbar is the bar located at the bottom of the Unyk screen containing the functions needed for the projects. Import Object (I): letting you import one or more objects into the 3D Area. Export Object: letting you save the object as a “.stl” file. Unload Object (U): letting you remove one or more selected objects from the current project. Move Object (M): letting you move an object or a group of objects inside the Working Area. Orientate Object (O): letting you position an object or a group of objects inside the Working Area by rotating it/them in many ways. Rescale Object (R): letting you change the size of the object to either smaller or larger. Duplicate Object (D): letting you duplicate an object or a group of objects. Mirror Object: letting you mirror an object or a group of objects. Arrange Object (A): letting you arrange all the objects or selected objects inside the platform. Mate Object: letting you arrange the position between an object and the bottom of the platform or between two or more objects. Create Hollow (H): letting you create a hollow object by creating one or more shells inside the object or one shell outside it. Wrap Object: letting you create a grid mesh around the outer surface of an object. Merge Objects: letting you merge two or more objects into one object. Create Holes (C): letting you create a number of holes in one or more objects. Triangle Reduction (T): letting you reduce a number of triangles of the object. Smooth Object (S): letting you smooth the object. Cut Object (Ctrl + X): letting you cut the object into smaller parts in various shapes. Add Label (L): letting you create an embossed or debossed text to print on the object. Create Support: letting you create supports for the object manually, automatically or advancedly. Add Level Support (Shift + A): letting you create level supports vertically inside the platform so that you could print many objects each time.
Unyk Basics content media
0
2
66
Pedro Braga
Mar 01, 2019
In How to use Unyk
Unyk is a complete tool for preparing any 3D object, it converts files like (PLY, SLC, 3DS, OBJ) to STL format, allowing support structure creation, object repair, edit your design and prepare your build platform. STL FILES An STL file consists of a list of triangle data which includes XYZ coordinates of the vertices and a normal that describes the 3D object. One triangle can be called one facet. Basically, by using triangles, it becomes possible to record a 3D object in a 2D space on paper, much as the Mercator maps of the globe are done. Triangles can be reassembled like the curved 3D surfaces. The more triangles contained per square measure (inches or centimeters), the finer the detail and the smoother the surface of the final object will be. Each triangle is uniquely defined by its Normal (a line which is perpendicular to the triangle), and three points representing its corners (vertical). Each corner (vertex) is specified by three coordinates. The Normal specifies the inside and outside sides of the triangle. The direction of a triangle is defined by the direction of the Normal. The Normal direction is inward and outward if the order of the corner points is counter-clockwise and clockwise respectively (The Right-Hand Rule). OBJECT'S SURFACE 3D object surface is a mesh of triangles. The orientation of a surface is determined by the orientation of all its triangles. The interior and exterior of the object are determined by the orientation of the surface. In the image bellow red and green arrows point outwards to indicate the exterior of the object. OBJECT'S FACES AND POINTS FACES are the number of the triangles which contain the object. POINTS are the number of the corners is contained inside the object EDGES are the sides of a triangle, each triangle has 3 edges that should be shared with others triangles.  OBJECT'S SHELLS SHELLS of an object are different parts joining together to make up that object. One SHELL is distinguished from another SHELL by the number of the triangles connected to one EDGE of the triangle. Each EDGE inside a SHELL cannot have more than two connections to any other individual triangle. If an EDGE has more than two connections to other triangles, the triangles will belong to different SHELLS.
STL Files and 3D Objects Basics content media
0
0
45
